Updating from version 3.14.15 to 3.14.16

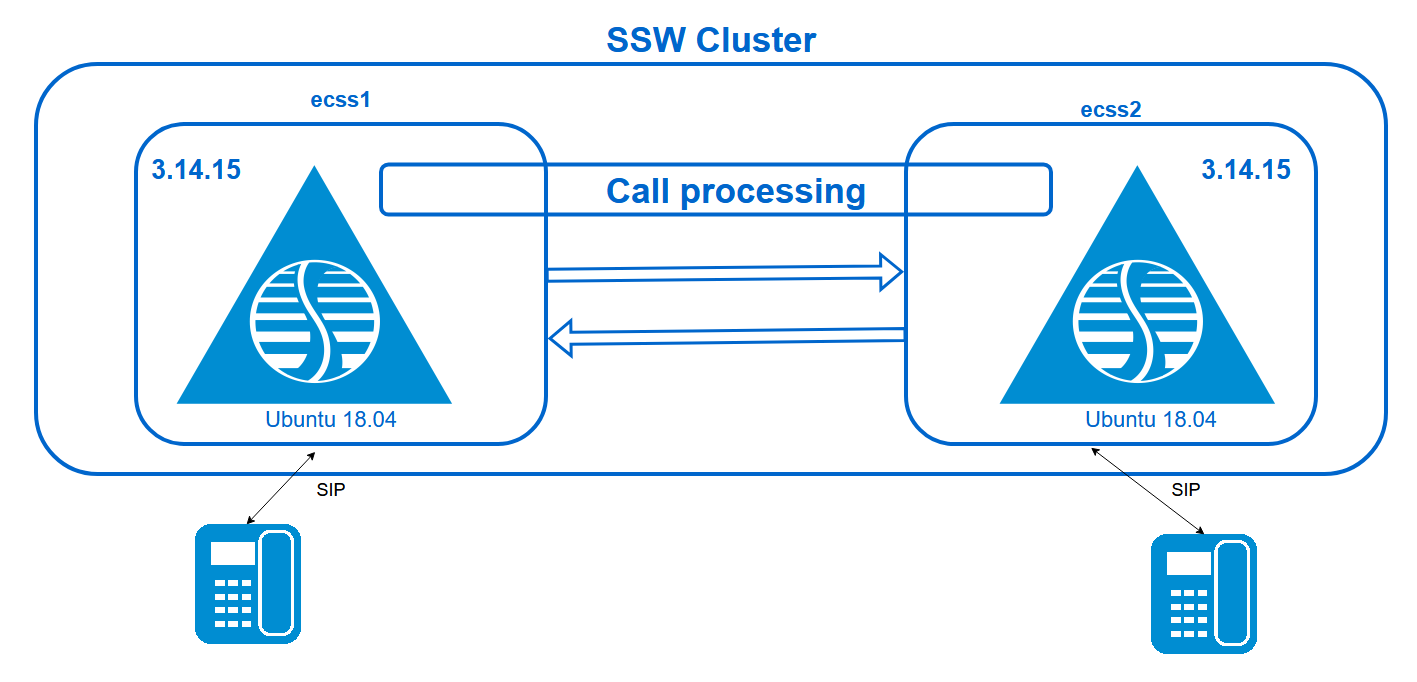

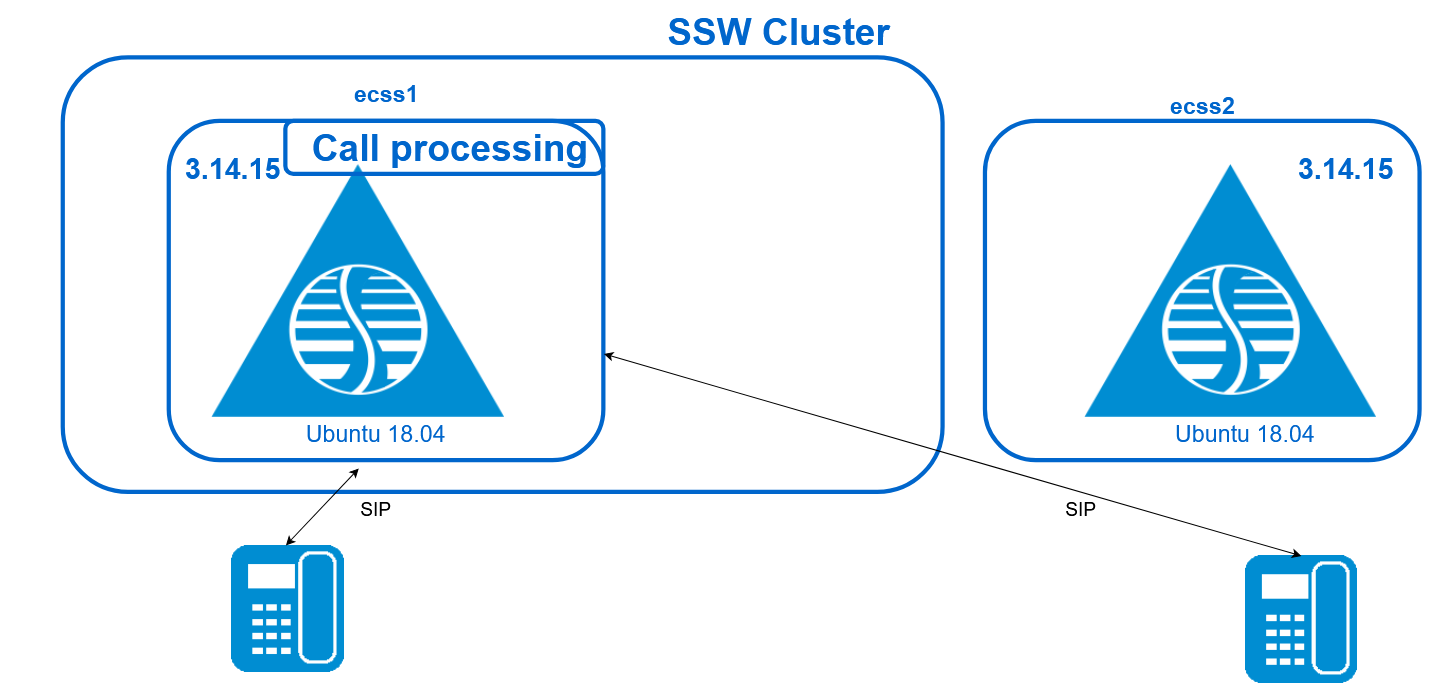

SSW 3.14.15 before update

Step 1 - "preparatory actions for ecss2"

Step 2 - Updating the Ubuntu 18.04 operating system to ecss2

Step 3 - preparing to upgrade SSW services to ecss2

Step 4 - Updating SSW services to ecss2

Step 5- Preparatory actions for ECSS1

Step 6 - updating the Ubuntu 18.04 operating system on ecss1

Step 7 - Preparing to upgrade SSW services on ecss1

Step 8 - Updating SSW services on ecss1

1 Preparatory steps on ecss2

1. Run a full backup
2. If you need the latest billing data, you must finalize the current CDR and download the CDR files to the remote server:
```
/domain/test_domain/cdr/make_finalize_cdr
Created file(s): cdr_20250822_11_51_16_1_c.csv
```
3. Enable the setting to automatically sync files in a split (by larger size).
  on ecss1
```
sudo gluster volume set ecss_volume cluster.favorite-child-policy size
```
4. Stop MySQL replication.
  Make sure the parameter values Slave_IO_Running и Slave_SQL_Running equal to No.
  on ecss1/ecss2
```
sudo mysql -uroot -p -e 'STOP SLAVE;'
```
  on ecss1/ecss2
```
sudo mysql -uroot -p -e 'SHOW SLAVE STATUS \G;' | grep -E "Slave_IO_Running:|Slave_SQL_Running:"
```
  Example
```
sudo mysql -uroot -p -e 'SHOW SLAVE STATUS \G;' | grep -E "Slave_IO_Running:|Slave_SQL_Running:"

. . .
             Slave_IO_Running: No
            Slave_SQL_Running: No
. . .
```
5. When upgrading a cluster, upgrade the servers one at a time. This ensures that one server is always running during an upgrade, and services will not be interrupted. To split the cluster, use the ecss-control tool on both servers.
  SIP signaling is exchanged via the SIP-VRRP IP address. Similarly, the connection to MySQL is established via the MySQL-VRRP IP address. This functionality is implemented to migrate the IP address to another host in the event of a failure, shutdown, or maintenance of the primary host. IP address migration is controlled by the keepalive service on each host. To redirect traffic to the first server (ecss1), disable keepalive on the second host (ecss2). In this case, both SIP-VRRP IP addresses, as well as the MySQL-VRRP IP address, will be located on the first host (ecss1). Run the following command:
  on ecss2
```
sudo systemctl disable --now keepalived.service
```
6. Use the ifconfig command to check that all VRRP IP addresses are on ecss1 (VRRP-mysql/VRRP-SIP1/VRRP-SIP2).
  on ecss1
```
ifconfig
```
7. On ecss1, split the SSW into two independent servers using the following command:
  The ecss-control command works with standard hostnames: ecss1/ecss2.
  on ecss1
```
sudo ecss-control detach
```
  Check status:
  on ecss1
```
sudo ecss-control status
```
  Result:
```
sudo ecss-control detach
detach host: ecss2, ip: 10.0.10.82
complete
sudo ecss-control status
locked ip: 10.0.10.82
```
  If, after splitting, a "503 Service Unavailable" error appears on the first host when attempting to call/register, run the following commands on the problematic host: ecss-attach ecss-pa-sip
  ecss-attach ecss-pa-sip ********************************************************************************* ! You attached to systemd-service ecss-pa-sip: sip1@ecss1. ! ! To exit, press Ctrl+C, Ctrl+C. ! ********************************************************************************* Erlang/OTP 21 [erts-10.3.5.10] [source] [64-bit] [smp:8:8] [ds:8:8:10] [async-threads:1] [hipe] Eshell V10.3.5.10 (abort with ^G) (sip1@ecss1)1> sip_config:tring_is_connected(). false (sip1@ecss1)2> sip_config:tring_is_connected(true). ok (sip1@ecss1)3> sip_config:tring_is_connected(). true
8. After splitting the cluster, you need to mask all nodes on the server that will be updated first:
  on ecss2
```
sudo systemctl mask --now ecss-ds ecss-mycelium ecss-mediator ecss-core ecss-pa-sip ecss-sorm
```
  There is one sorm node per cluster. If it's running on ecss1, a notification will be sent when the attached command is executed.
  Unit /etc/systemd/system/ecss-sorm.service is masked, ignoring.
  This message is not an error. Continue with the procedure.
9. Perform a backup of the databases.
  IMPORTANT! The data in the backup is correct.
  Before creating a backup, make sure that the tolltickets table in your database does not contain obsolete fields using the command:
  sudo mysql -uroot -p -e "SHOW CREATE TABLE ecss_calls_db.tolltickets\G;" | grep 'ss_info' || echo "Поле не найдено"
  If the command shows "`ss_info` text COLLATE latin1_general_ci,", then bring the table to the current state with the command:
  sudo mysql -uroot -p -e "ALTER TABLE ecss_calls_db.tolltickets DROP COLUMN ss_info;"
  on ecss2
```
sudo mysqldump -uroot -p --verbose --single-transaction --quote-names --complete-insert --extended-insert --routines --events --triggers --databases ecss_address_book ecss_audit ecss_calls_db ecss_dialer_db ecss_meeting_db ecss_numbers_db ecss_statistics ecss_subscribers ecss_system web_conf history_db > ./all_dump.sql
```
10. Add the skip-log-bin and skip-slave-start parameters to the MySQL configuration on ecss2 (to avoid writing the database deletion process to the binary logs) by running the command:
  on ecss2
```
sudo sed -i  '40i\skip-log-bin\nskip-slave-start' /etc/mysql/mysql.conf.d/mysqld.cnf
```
11. Delete the backup configuration file (so that when deleting it, ecss-mysql does not load the configuration from it):
  on ecss2
```
sudo rm /var/lib/ecss/ecss-mysql/backup/mysqld.cnf
```
12. Restart ecss-mysql with the new configuration:
  on ecss2
```
sudo systemctl restart mysql.service
```
13. To ensure replication works correctly after the update, you need to save the ecss-mysql configuration files, so we'll create a separate backup for the files before the update:
  on ecss2
```
sudo cp -a /etc/ecss/ecss-mysql ~/ecss-mysql-etc-backup
```
14. Delete ecss-web-conf and ecss-mysql, along with their configuration files (to avoid configuration errors during the update):
  In the questions, change the MySQL IP to the local database IP
  on ecss2
```
sudo dpkg-reconfigure ecss-web-conf
```
  on ecss2
```
sudo apt purge ecss-web-conf
```
  To questions about deleting databases → we answer yes to the questions - delete all databases
  on ecss2
```
sudo apt purge ecss-mysql
```
15. Check that the databases have been deleted by running the command; the output should not contain any other databases except the system ones ('information_schema','mysql','performance_schema','sys'):
  on ecss2
```
sudo mysql -uroot -p -e "SHOW DATABASES;"
```
16. If ecss-call-api and ecss-elph-api are used, they should be removed (to avoid dependency conflicts during the update).
  on ecss2
```
sudo apt-get remove ecss-call-api
sudo apt-get remove ecss-elph-api
```
17. Remove skip-log-bin from the configuration file:
  on ecss2
```
sudo sed -i '/skip-log-bin/d' /etc/mysql/mysql.conf.d/mysqld.cnf
```
18. Fix mysql packages (to prevent the package manager from deleting mysql when updating the system):
  on ecss2
```
sudo apt-mark hold mysql-*
```
19. Install the nodejs package version (to ensure the distribution is updated correctly):
  on ecss2
```
sudo apt install nodejs=8.10.*
```

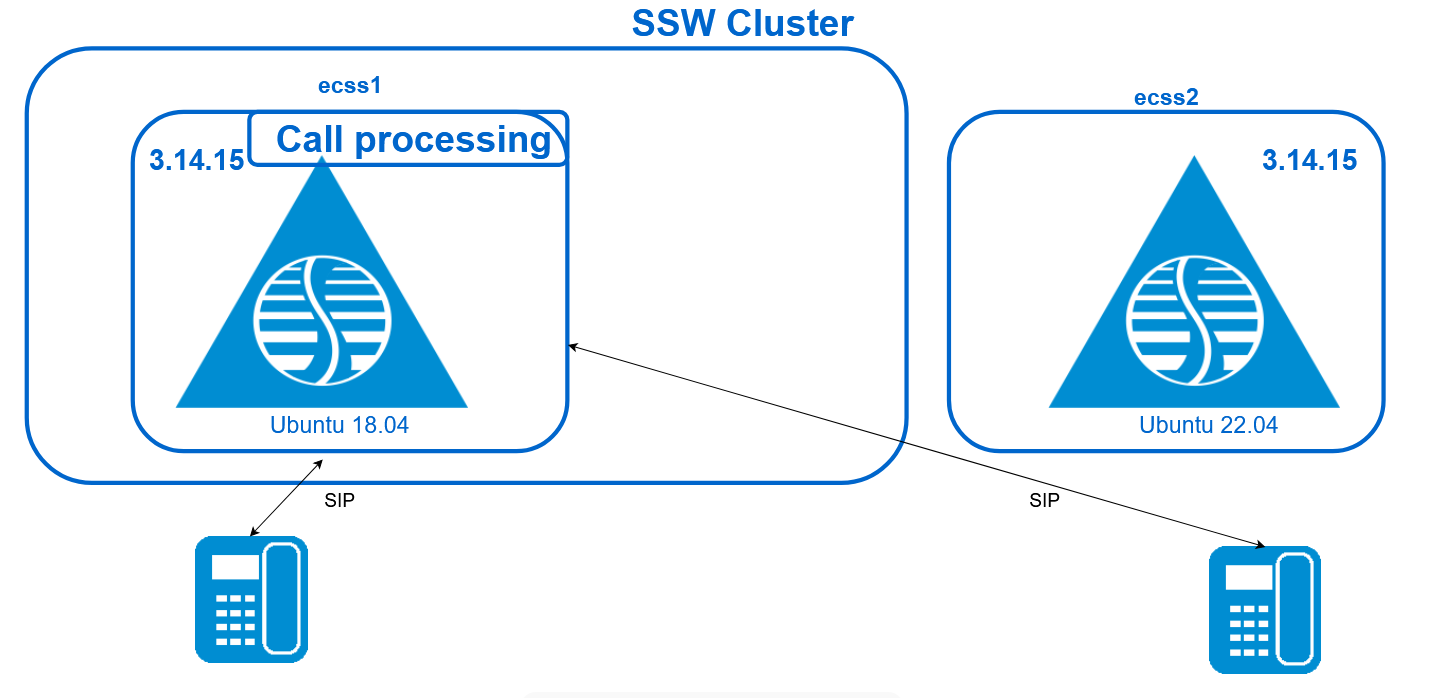

2 Upgrading the Ubuntu 18.04 operating system to ecss2

1. Upgrading from Ubuntu 18.04 (Bionic) to Ubuntu 20.04 (Focal)
  on ecss2
```
do-release-upgrade -m server
```
  on ecss2
  If you receive a message:
  Checking for a new Ubuntu release
  Please install all available updates for your release before upgrading.
  run the following commands:
  on ecss2

  sudo apt update
  on ecss2

  sudo apt upgrade
  on ecss2

  sudo apt dist-upgrade
  You may also need to update the ecss-user package with the following command:
  on ecss2

  sudo apt install ecss-user
  and then repeat the do-release-upgrade -m server command:
  on ecss2

  do-release-upgrade -m server
  Answers to questions during the update
  During the upgrade, accept all new ecss package configurations.

  During the update process, the system may prompt you to reboot. Accept.
2. Checking the dnsmasq service.
  If the dnsmasq service is not active after the update:
  on ecss2
```
systemctl is-active dnsmasq
```
  Example
```
systemctl is-active dnsmasq
failed
```
  Run the following commands:
  Delete the remaining configuration file:
  on ecss2
```
sudo rm /etc/dnsmasq.d/lxd
```
  Restart the service dnsmasq :
  on ecss2
```
sudo systemctl restart dnsmasq
```
  Check service status:
  Example
```
systemctl is-active dnsmasq
active
```
  After these steps, the service should be active and work without errors.
3. Updating mysql packages.
  Disable package pinning:
  on ecss2
```
sudo apt-mark unhold mysql-*
```
  Update MySQL to version 8.0:
  on ecss2
```
sudo apt install mysql-server
```
  Answers to questions from the package manager
  Important! When upgrading MySQL, you must leave the old configuration file /etc/mysql/mysql.conf.d/mysqld.conf intact to avoid losing the flags you set.
  After the update, you need to update your MySQL settings for version 8.0.
  on ecss2
```
sudo sed -i -e 's/^max_allowed_packet.*/max_allowed_packet = 64M/' \
       -e 's/^thread_stack.*/thread_stack = 256K/' /etc/mysql/mysql.conf.d/mysqld.cnf
```
4. Finish updating the host with the following command:
  on ecss2
```
sudo apt full-upgrade
```
  Check your Ubuntu version with the following command:
  on ecss2
```
 lsb_release -a
```
  Result:
```
lsb_release -a
No LSB modules are available.
Distributor ID:	Ubuntu
Description:	Ubuntu 20.04.6 LTS
Release:	20.04
Codename:	focal
```
5. Update from Ubuntu 20.04 (Focal) to Ubuntu 22.04 (Jammy)
  on ecss2
```
do-release-upgrade -m server
```
  When the system reports:
  do-release-upgrade -m server Checking for a new Ubuntu release You have not rebooted after updating a package which requires a reboot. Please reboot before upgrading.
  perform a reboot with the following command:
  on ecss2

  sudo reboot
  and then repeat the command:
  on ecss2

  do-release-upgrade -m server
  Answers to questions during the update
  During the upgrade, accept all new ecss package configurations.
  During the update process, the system may prompt you to reboot. You should agree.
6. After the update is complete, run the command:
  on ecss2
```
sudo apt autoremove
```
  This step can take quite a long time.

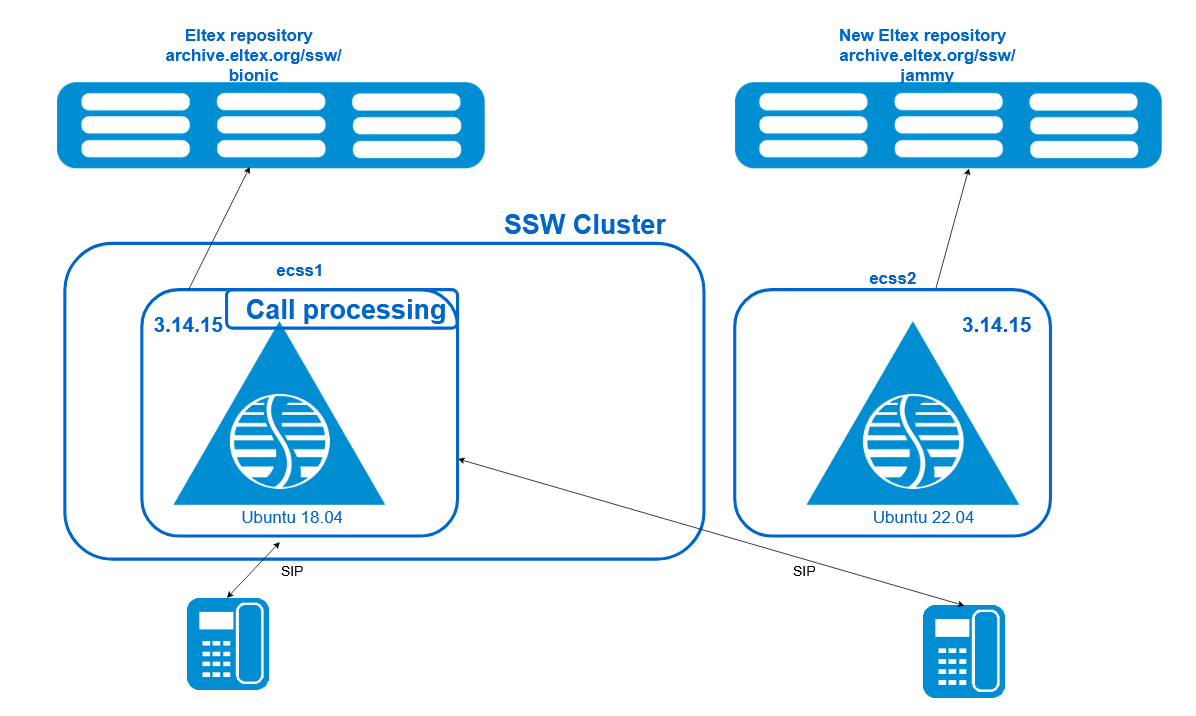

3 Preparing to upgrade SSW services on ecss2

Perform a split on ecss2:
The ecss-control command works with standard hostnames: ecss1/ecss2.
on ecss2
```
sudo ecss-control detach
```

Update the ssw repository:

on ecss2

sudo sh -c "echo deb [arch=amd64] http://archive.eltex.org/ssw/jammy/3.14.16.1 stable main extras external > /etc/apt/sources.list.d/eltex-ecss10-stable.list"

Temporarily fix the version of ecss-* packages to which you will need to upgrade:

on ecss2

sudo sh -c "echo 'Package: ecss-*\nPin: version 14.16.1.*\nPin-Priority: 1001\n\nPackage: erlang*\nPin: version 2:24.3.10*\nPin-Priority: 1001' >> /etc/apt/preferences.d/eltex-ecss10"

Perform package update:
on ecss2
```
sudo apt update
```
Disable nginx service:
on ecss2
```
sudo systemctl disable --now nginx
```

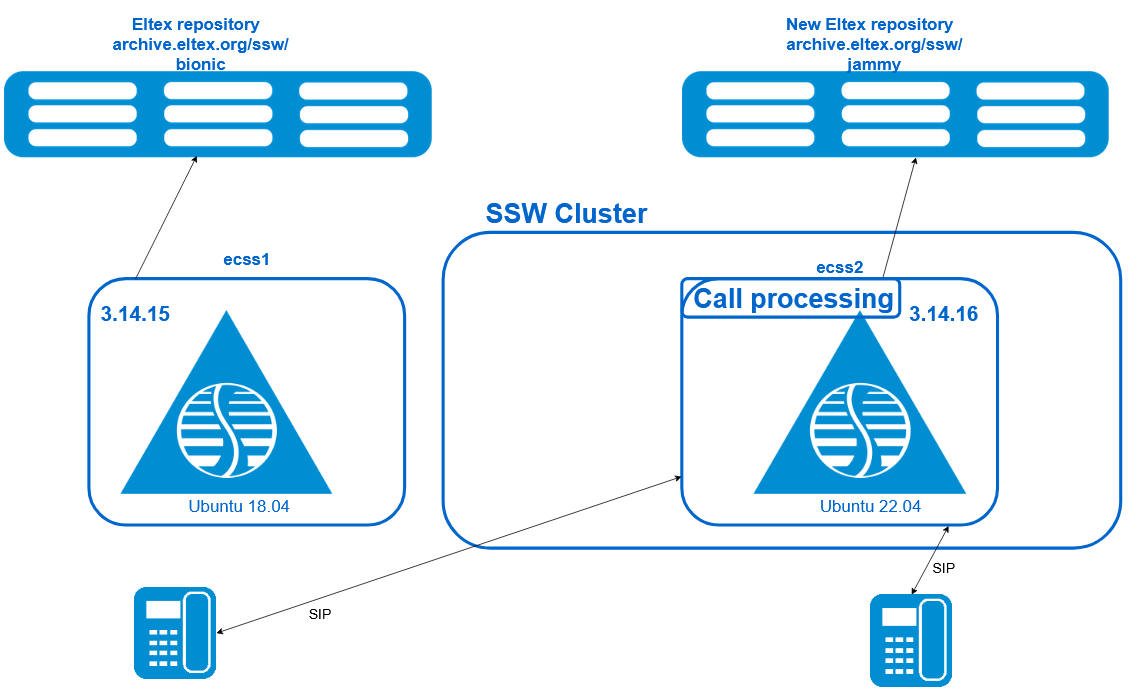

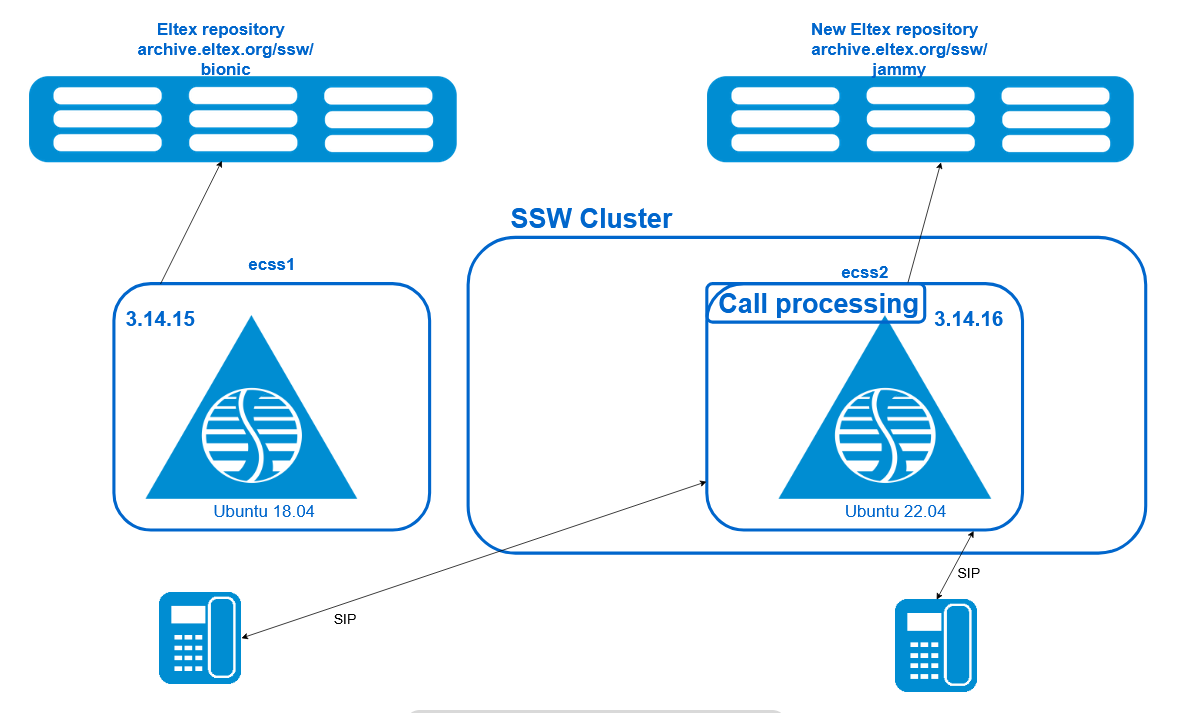

4 Updating SSW services on ecss2

Updating the ecss-dns-env package:
on ecss2
```
sudo apt install ecss-dns-env
```
When updating, you need to apply new configuration files (confirm with -Y)

After the update, you need to update the configuration by running the command. The answers to the questions are similar to the installation procedure
on ecss2
```
sudo dpkg-reconfigure ecss-dns-env
```
Update the ecss-user package:
on ecss2
```
sudo apt install ecss-user
```
Updating the ecss-mysql package:
Before updating the ecss-mysql package to maintain compatibility with mysql v5.7, you need to enable the deprecated plugin in the mysql configuration by default:
on ecss2
sudo sh -c "echo '[mysqld]\ndefault_authentication_plugin = mysql_native_password' >> /etc/mysql/conf.d/plugin.cnf"
Restart MySQL:
on ecss2
```
sudo systemctl restart mysql
```
Install the ecss-mysql package:
on ecss2
```
sudo apt install ecss-mysql
```
When installing, in response to the question "Path for external data-directory, where tables of databases will be created", you must specify the external directory for storing database tables, or accept the default value.
Move the backup of ecss-mysql configuration files (saved earlier) back:
on ecss2
```
sudo rm -rf /etc/ecss/ecss-mysql && sudo cp -a ~/ecss-mysql-etc-backup /etc/ecss/ecss-mysql
```
Check and, if necessary, update the parameters in "/etc/ecss/ecss-mysql/mysql-checker.conf".
The "MASTER_HOST_IP" variable is the VRRP address for MySQL defined in the keepalived configuration.

Enable ecss-mysql-checker.timer:

on ecss2

sudo systemctl enable --now ecss-mysql-checker.timer

Loading a database backup:
Before loading a backup, you must modify it by specifying the external directory where the database tables are stored. Since the ecss-mysql database tables are installed in a separate directory (/var/lib/ecss-mysql), you must specify the external directory for all tables in the backup; otherwise, they will be created in the default data directory (/var/lib/mysql). Also, when loading a backup, disable binary logging.
on ecss2
```
sudo sed -E "s/(ENGINE=(MyISAM|InnoDB))/\1 DATA DIRECTORY = '\/var\/lib\/ecss-mysql'/g" all_dump.sql | (echo "SET sql_log_bin = 0;"; cat -) | sudo mysql -uroot -p
```
After downloading the backup, reconfigure the ecss-mysql package to include the necessary v3.14.16 migrations that are missing from the backup.
on ecss2
```
sudo dpkg-reconfigure ecss-mysql
```
Restart replication with the command and make sure that the slave server has pulled all changes from the master (wait until the "Seconds_Behind_Master" variable becomes equal to 0, and the Relay_Master_Log_File value should match the Master_Log_File value).
on ecss2
```
sudo mysql -uroot -p -e "START SLAVE;"
```
on ecss2
```
sudo mysql -e 'SHOW SLAVE STATUS \G;' | grep -E "Seconds_Behind_Master|Relay_Master_Log_File|Master_Log_File"
```
Example
```
sudo mysql -e 'SHOW SLAVE STATUS \G;' | grep -E "Seconds_Behind_Master|Relay_Master_Log_File|Master_Log_File"
[sudo] password for abf:
              Master_Log_File: server-mysql-bin.001152
        Relay_Master_Log_File: server-mysql-bin.001152
        Seconds_Behind_Master: 0
```
Remove the skip-slave-start parameter from the mysql configuration and backup file:
on ecss2
```
sudo sed -i '/skip-slave-start/d' /etc/mysql/mysql.conf.d/mysqld.cnf
sudo sed -i '/skip-slave-start/d' /var/lib/ecss/ecss-mysql/backup/mysqld.cnf
```
It is not necessary to restart mysql - this option only affects the state of SLAVE when mysql starts, and it was started directly.
Updating Erlang and SSW.
Before updating, enable ssw services using the following commands:
on ecss2
```
sudo systemctl unmask ecss-ds ecss-mycelium ecss-mediator ecss-core ecss-pa-sip ecss-sorm
```
on ecss2
```
sudo systemctl enable ecss-ds ecss-mycelium ecss-mediator ecss-core ecss-pa-sip ecss-sorm
```
Before upgrading, uninstall the outdated version of Erlang. The following command will upgrade Erlang to version 24.3 and also upgrade the ecss-node and ecss-utils packages to the latest version:
on ecss2
```
sudo apt remove erlang-base-hipe
```
If Erlang is not updated by removing the old package, first update ecss-node and ecss-utils, and then update the entire Erlang:
on ecss2
sudo apt install ecss-node ecss-utils
on ecss2
sudo apt install erlang
After upgrading Erlang, unmask the service that was masked when erlang-base-hipe was removed:
on ecss2
```
sudo systemctl unmask epmd.socket epmd.service
```
Launch SSW on ecss2.
Before launching, change the cluster name to something different from the cluster name specified on ecss1. For example, add the "upd" suffix to the cluster name:

It is required because mycelium1 and mycelium2 find each other and in case of different versions - mycelium on ecss2 crashes.
on ecss2
```
sudo nano /etc/ecss/ecss-mycelium/mycelium1.config
```
on ecss2
```
{mycelium_broker, [
    {cluster_name, 'test_cluster_upd'},
```
start the following services:
ecss-mycelium
on ecss2
```
sudo systemctl start ecss-mycelium
```
ecss-ds
on ecss2
```
sudo systemctl start ecss-ds
```
ecss-core
on ecss2
```
sudo systemctl start ecss-core
```
!!!DO NOT LAUNCH PA-SIP YET!!!
ecss-mediator
on ecss2
```
sudo systemctl start ecss-mediator
```

To check the status of services, run the system-status command in CoCon:

performed in CoCon

/system-status
Checking...
┌─┬───────────────┬────────────────────────────┬───────────────┬────────────┬──────┐
│ │     Node      │          Release           │ Erlang nodes  │Mnesia nodes│Uptime│
├─┼───────────────┼────────────────────────────┼───────────────┼────────────┼──────┤
│ │core1@ecss2    │ecss-core-3.14.16.1.130     │core1@ecss2    │not running │2m 27s│
│ │ds1@ecss2      │ecss-ds-3.14.16.1.130       │ds1@ecss2      │ds1@ecss2   │2m 32s│
│ │md1@ecss2      │ecss-mediator-3.14.16.1.130 │md1@ecss2      │md1@ecss2   │2m 16s│
│ │mycelium1@ecss2│ecss-mycelium-3.14.16.1.130 │mycelium1@ecss2│not running │2m 39s│
│ │sorm1@ecss2    │ecss-sorm-3.14.16.1.130     │sorm1@ecss2    │not running │1m 56s│
└─┴───────────────┴────────────────────────────┴───────────────┴────────────┴──────┘

All services are started.

  Active media resource selected list specific:
┌─────────────┬───────────┬─────────────┬───────────┬───────────┐
│    Node     │    MSR    │     MSR     │ Cc-status │ Cc-uptime │
│             │           │   version   │           │           │
├─────────────┼───────────┼─────────────┼───────────┼───────────┤
│ core1@ecss2 │ msr.ecss1 │ 3.14.15.243 │ connected │ 00:00:10  │
│             │ msr.ecss2 │ 3.14.15.243 │ connected │ 00:00:10  │
└─────────────┴───────────┴─────────────┴───────────┴───────────┘

Updating ecss-restfs.

Accept all new configuration files by selecting Y.
on ecss2
```
sudo apt install ecss-restfs
```

Updating the ecss-media-server package.

First, disable registration on the working host ecss1. To do this, comment out the line with the working host's realm in the configuration file (in the example, realm="sip:10.0.20.81:5000") with the following command (adding <!- - at the beginning of the line and - -> at the end of the line):

on ecss2

sudo nano /etc/ecss/ecss-media-server/conf.d/default.xml

Example

<?xml version="1.0"?>
<config>
  <accounts>
          <!--<dynamic msr_name="msr.ecss2" realm="sip:10.0.20.81:5000" dtmf_mode="rfc+inband+info" auth_name="user" auth_password="password"/>-->
          <dynamic msr_name="msr.ecss2" realm="sip:10.0.20.82:5000" dtmf_mode="rfc+inband+info" auth_name="user" auth_password="password"/>
  </accounts>
</config>

Perform update:

on ecss2

sudo apt install ecss-media-server

Update configuration:

on ecss2

sudo dpkg-reconfigure ecss-media-server

Perform a check and, if necessary, edit the file using the command:

on ecss2

sudo nano /etc/ecss/ecss-media-server/config.xml

example

<?xml version="1.0" encoding="utf-8"?>
<config date="16:54:35 20.02.2025">
  <general log-level="3" log-rotate="yes" max-calls="8192" max-vid-calls="8192" max-in-group="512" load-sensor="media" load-delta="10" calls-delta="100" spool-dir-size="100M" log-name="msr.log" log-path="/var/log/ecss/media-server" use-srtp="disabled" enable-ice-transport="no" ice-update="no" aggressive-ice="yes" stun-server="" suspicious-mode="no"/>
  <transport bind-addr="10.0.20.80" port="5040" transport="udp+tcp"/>
  <!-- By default configured public TURN-server -->
  <turn-server use-turn="no" host="numb.viagenie.ca" user="webrtc@live.com" password="muazkh"/>
  <media mixer-clock-rate="8000" use-vad="no" cng-level="0" jb-size="60" rtcp-timeout="0" rtp-timeout="350" udp-src-check="no" cn-multiplier="3" port-start="12000" port-range="2048" tias-in-sdp="no" thread-cnt="2" vid-enc-threads="2" vid-dec-threads="2" video-conf-layout="evenly" keyframe-interval="1000" vid-decode-delay="100" silence-threshold="-30" dtmf-flash-disable="no" video-dscp="0" other-dscp="0" dummy-video-src="/usr/share/ecss-media-server/video/dummy_video.yuv" video-enc-width="640" video-enc-height="360" finalsilence="1000" rtcp-stat-dump="yes" dtmf-tg-fpc-loop="10" dtmf-tg-fit="1" dtmf-tg-fot="2" dtmf-tg-volume="12288"/>
  <codec pcma="1" pcmu="2" ilbc="0" gsm="0" g722="3" g726="0" g729="0" speex="0" l16="0" g7221="0" opus="0" h264="1" h263-1998="2" t38="1" tel-event-pt="0"/>
  <accounts>
    <!-- <dynamic msr_name="msr.name"
            realm="sip:127.0.0.1:5000"
            dtmf_mode="rfc+inband+info"
            auth_name="user"
            auth_password="password" /> -->
  </accounts>
  <pbyte>
    <mcc bind-addr="10.0.20.82" port="5700"/>
  </pbyte>
  <conf_dir path="/etc/ecss/ecss-media-server/conf.d"/>
  <metrics enable="no" msr_name="msr" port="8100"/>
  <rtp>
    <auto addr-v4=""/>
  </rtp>
</config>

Updating the package ecss-media-resources:
on ecss2
```
sudo apt install ecss-media-resources
```
Updating the packageecss-web-conf
on ecss2
```
sudo apt install ecss-web-conf
```
Updating the package ecss-teleconference-ui
on ecss2
sudo apt install ecss-teleconference-ui
Updating the package ecss-crm-server
on ecss2
sudo apt install ecss-crm-server
Updating the package ecss-cc-ui
on ecss2
sudo apt install ecss-cc-ui
Updating the packageecss-call-api
on ecss2
sudo apt install ecss-call-api
Updating the package ecss-elph-api
on ecss2
sudo apt install ecss-elph-api

Before transferring keepalived to the updated host, you need to copy the current ds database from ecss1 (otherwise, the registration database will be empty). Therefore, first, backup the Mnesia database to ecss1:

/node/ds1@ecss1/oasys/backup
Backup was successfully created at the path: "/var/lib/ecss/oasys/Mnesia.ds1@ecss1_20250930081517"

Останавливаем ecss-ds на ecss2:

on ecss2

sudo systemctl stop ecss-ds

Using the scp command, copy the backup from ecss1 to ecss2.

on ecss2

scp -r ecss@ecss1:/var/lib/ecss/oasys/Mnesia.ds1@ecss1_20250930081517 /var/lib/ecss/oasys

We make a local copy of the current configuration:

on ecss2

sudo cp -a /var/lib/ecss/oasys/Mnesia.ds1@ecss2 /var/lib/ecss/oasys/Mnesia.ds1@ecss2-bkp

We replace the local configuration with the backup configuration from ecss1:

on ecss2

sudo mv /var/lib/ecss/oasys/Mnesia.ds1@ecss1_20250930081517 /var/lib/ecss/oasys/Mnesia.ds1@ecss2

on ecss2

sudo chown -R ssw:ssw /var/lib/ecss/oasys

Run ecss-ds and ecss-pa-sip (to load current subscriber registrations):

on ecss2

sudo systemctl start ecss-ds

on ecss2

sudo systemctl start ecss-pa-sip

Check the status of services with the command /system-status :

in CoCon

/system-status
Checking...
┌─┬───────────────┬────────────────────────────┬───────────────┬────────────┬──────┐
│ │     Node      │          Release           │ Erlang nodes  │Mnesia nodes│Uptime│
├─┼───────────────┼────────────────────────────┼───────────────┼────────────┼──────┤
│ │core1@ecss2    │ecss-core-3.14.16.1.130     │core1@ecss2    │not running │2m 27s│
│ │ds1@ecss2      │ecss-ds-3.14.16.1.130       │ds1@ecss2      │ds1@ecss2   │2m 32s│
│ │md1@ecss2      │ecss-mediator-3.14.16.1.130 │md1@ecss2      │md1@ecss2   │2m 16s│
│ │mycelium1@ecss2│ecss-mycelium-3.14.16.1.130 │mycelium1@ecss2│not running │2m 39s│
│ │sip1@ecss2     │ecss-pa-sip-3.14.16.1.130   │sip1@ecss2     │sip1@ecss2  │2m 22s│
│ │sorm1@ecss2    │ecss-sorm-3.14.16.1.130     │sorm1@ecss2    │not running │1m 56s│
└─┴───────────────┴────────────────────────────┴───────────────┴────────────┴──────┘

All services are started.

  Active media resource selected list specific:
┌─────────────┬───────────┬─────────────┬───────────┬───────────┐
│    Node     │    MSR    │     MSR     │ Cc-status │ Cc-uptime │
│             │           │   version   │           │           │
├─────────────┼───────────┼─────────────┼───────────┼───────────┤
│ core1@ecss2 │ msr.ecss1 │ 3.14.15.243 │ connected │ 00:00:10  │
│             │ msr.ecss2 │ 3.14.16.1.0 │ connected │ 00:00:10  │
└─────────────┴───────────┴─────────────┴───────────┴───────────┘

Launching the service keepalived
on ecss2
```
sudo systemctl enable --now keepalived
```
After updating services, delete the ssw version commit file:
on ecss2
```
sudo rm /etc/apt/preferences.d/eltex-ecss10
```

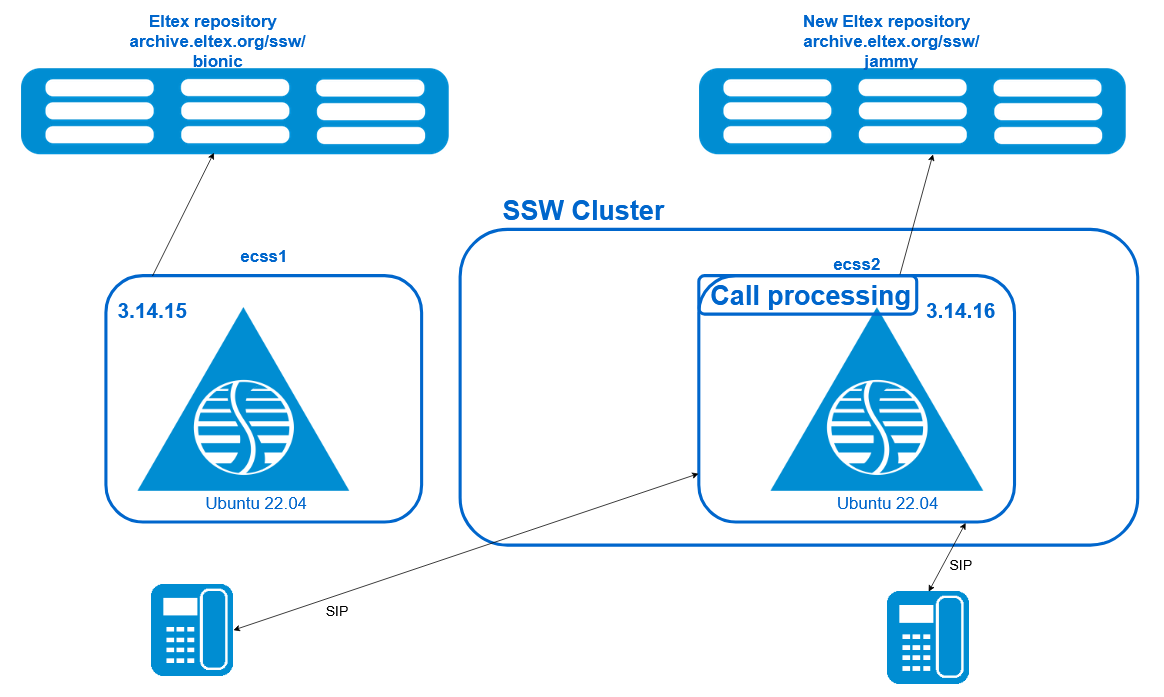

5 Preparatory steps on ecss1

1. Run a full backup.
2. Stop MySQL replication (on ecss2). Ensure that the Slave_IO_Running and Slave_SQL_Running parameters are set to No.
  on ecss2
```
sudo mysql -uroot -p -e 'STOP SLAVE;'
```
  on ecss2
```
sudo mysql -uroot -p -e 'SHOW SLAVE STATUS \G;' | grep -E "Slave_IO_Running:|Slave_SQL_Running:"
```
  Example
```
sudo mysql -uroot -p -e 'SHOW SLAVE STATUS \G;' | grep -E "Slave_IO_Running:|Slave_SQL_Running:"

. . .
             Slave_IO_Running: No
            Slave_SQL_Running: No
. . .
```
3. Prepare ecss1 for upgrade by transferring all traffic to ecss2 (the command is executed on ecss1):
  on ecss1
```
sudo systemctl disable --now keepalived.service
```
4. Use the ifconfig command to check that all VRRP addresses (VRRP IP-mysql / VRRP IP-SIP1 / VRRP IP-SIP2) are on ecss2.
  on ecss2
```
ifconfig
```
  If, after switching to ecss2, you receive a "503 Service Unavailable" error when attempting to call or register, run the following commands on the problematic host: ecss-attach ecss-pa-sip
  ecss-attach ecss-pa-sip ********************************************************************************* ! You attached to systemd-service ecss-pa-sip: sip1@ecss1. ! ! To exit, press Ctrl+C, Ctrl+C. ! ********************************************************************************* Erlang/OTP 21 [erts-10.3.5.10] [source] [64-bit] [smp:8:8] [ds:8:8:10] [async-threads:1] [hipe] Eshell V10.3.5.10 (abort with ^G) (sip1@ecss1)1> sip_config:tring_is_connected(). false (sip1@ecss1)2> sip_config:tring_is_connected(true). ok (sip1@ecss1)3> sip_config:tring_is_connected(). true
5. After splitting the cluster, you must shut down all nodes on the ecss1 server:
  on ecss1
```
sudo systemctl mask --now ecss-ds ecss-mycelium ecss-mediator ecss-core ecss-pa-sip ecss-sorm
```
6. Database backup (on ecss1):
  IMPORTANT! correctness of the data in the backup.
  Before creating a backup, make sure that the tolltickets table in your database does not contain obsolete fields using the command:
  sudo mysql -uroot -p -e "SHOW CREATE TABLE ecss_calls_db.tolltickets\G;" | grep 'ss_info' || echo "Поле не найдено"
  If the command shows "`ss_info` text COLLATE latin1_general_ci,", then bring the table to the current state with the command:
  sudo mysql -uroot -p -e "ALTER TABLE ecss_calls_db.tolltickets DROP COLUMN ss_info;"
  on ecss1
```
sudo mysqldump -uroot -p --verbose --single-transaction --quote-names --complete-insert --extended-insert --routines --events --triggers --databases ecss_address_book ecss_audit ecss_calls_db ecss_dialer_db ecss_meeting_db ecss_numbers_db ecss_statistics ecss_subscribers ecss_system web_conf history_db > ./all_dump.sql
```
7. Add the skip-log-bin and skip-slave-start parameters to the mysql configuration on ecss1 (to avoid writing the database deletion process to the binary logs):
  on ecss1
```
sudo sed -i '40i\skip-log-bin\nskip-slave-start' /etc/mysql/mysql.conf.d/mysqld.cnf
```
8. Delete the backup configuration file (so that when deleting it, ecss-mysql does not load the configuration from it):
  on ecss1
```
sudo rm /var/lib/ecss/ecss-mysql/backup/mysqld.cnf
```
9. Restart mysql with the new configuration:
  on ecss1
```
sudo systemctl restart mysql.service
```
10. To ensure correct replication operation after the upgrade, you must save the ecss-mysql configuration files. Therefore, create a separate backup for the files before the upgrade:
  on ecss1
```
sudo cp -a /etc/ecss/ecss-mysql ~/ecss-mysql-etc-backup
```
11. Delete ecss-web-conf and ecss-mysql along with their configuration files (to avoid configuration errors during the update):
  In the questions, change the MySQL IP to the local database IP
  on ecss1
```
sudo dpkg-reconfigure ecss-web-conf
```
  on ecss1
```
sudo apt purge ecss-web-conf
```
  To questions about deleting databases → we answer yes to the questions - delete all databases
  on ecss1
```
sudo apt purge ecss-mysql
```
12. Check that the databases have been deleted using the command:
  The output should not contain any other databases except system ones ('information_schema', 'mysql', 'performance_schema', 'sys').
  on ecss1
```
sudo mysql -uroot -p -e "SHOW DATABASES;"
```
13. If you are using ecss-call-api and ecss-elph-api, remove them (to avoid dependency conflicts during the update):
  on ecss1
```
sudo apt remove ecss-call-api
sudo apt remove ecss-elph-api
```
14. Remove skip-log-bin from the configuration file:
  on ecss1
```
sudo sed -i '/skip-log-bin/d' /etc/mysql/mysql.conf.d/mysqld.cnf
```
15. Fix mysql packages (to prevent the package manager from deleting mysql when updating the system):
  on ecss1
```
sudo apt-mark hold mysql-*
```
16. Install the nodejs package version (to ensure the distribution is updated correctly):
  on ecss1
```
sudo apt install nodejs=8.10.*
```

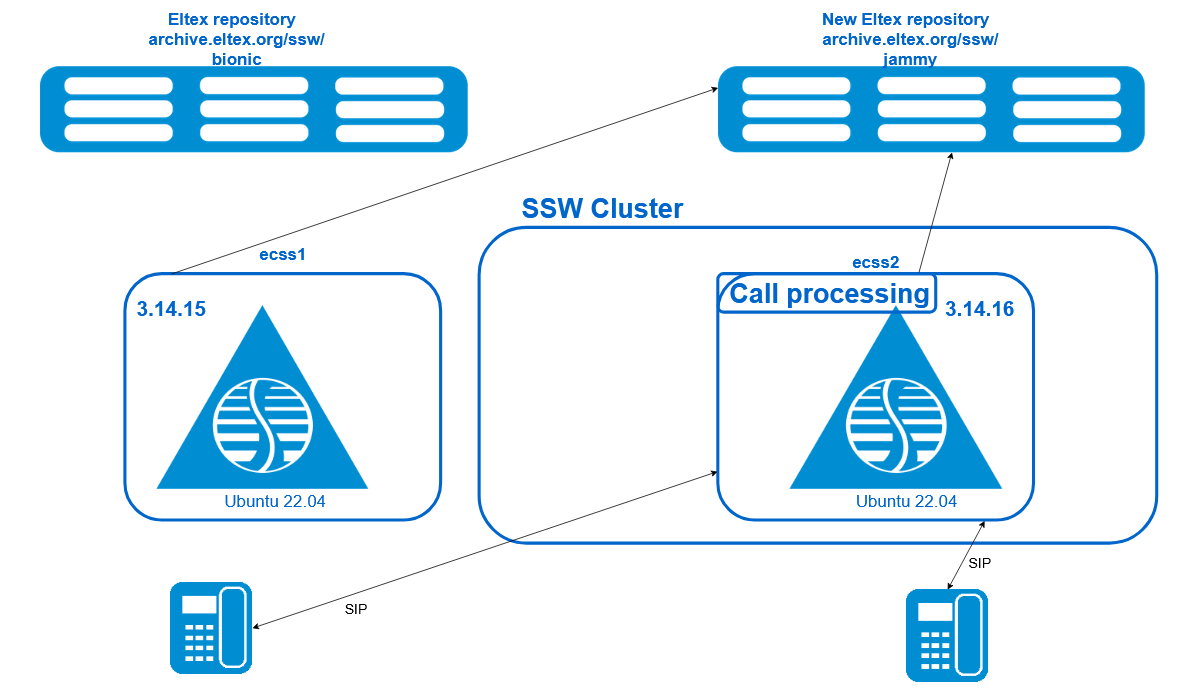

6 Upgrading the Ubuntu 18.04 operating system on ecss1

1. Upgrading from Ubuntu 18.04 (Bionic) to Ubuntu 20.04 (Focal)
  on ecss1
```
do-release-upgrade -m server
```
  If you receive a message:
  Checking for a new Ubuntu release
  Please install all available updates for your release before upgrading.
  run the following commands:
  on ecss1

  sudo apt update
  on ecss1

  sudo apt upgrade
  on ecss1

  sudo apt dist-upgrade
  You may also need to update the ecss-user package with the following command:
  on ecss1

  sudo apt install ecss-user
  and then repeat the command do-release-upgrade -m server:
  on ecss1

  do-release-upgrade -m server
  Answering questions during the update
  During the upgrade, accept all new ecss package configurations.
2. Checking the dnsmasq service
  Checking the dnsmasq service
  - If the dnsmasq service is not active after the update:
    on ecss1

    systemctl is-active dnsmasq

    Example

    systemctl is-active dnsmasq failed

    Run the following commands:
    Delete the remaining configuration file
    on ecss1

    sudo rm /etc/dnsmasq.d/lxd

    Restart the service
    on ecss1

    sudo systemctl restart dnsmasq

    Check service status:
    Example

    systemctl is-active dnsmasq active

    After these steps, the service should be active and work without errors.
  Updating mysql packages.
  Unpin packages:
3. on ecss1
```
sudo apt-mark unhold mysql-*
```
  Update MySQL to version 8.0:
  on ecss1
```
sudo apt install mysql-server
```
  Answers to questions from the package manager
  Important! When upgrading MySQL, you must leave the old configuration file /etc/mysql/mysql.conf.d/mysqld.conf intact to avoid losing the flags you set.
  After the update, you need to update the MySQL settings for version 8.0:
  on ecss1
```
sudo sed -i -e 's/^max_allowed_packet.*/max_allowed_packet = 64M/' \
       -e 's/^thread_stack.*/thread_stack = 256K/' /etc/mysql/mysql.conf.d/mysqld.cnf
```
4. Finish updating the host with the command:
  on ecss1
```
sudo apt full-upgrade
```
5. Upgrade from Ubuntu 20.04 (Focal) to Ubuntu 22.04 (Jammy)
  on ecss1
```
do-release-upgrade -m server
```
  Answers to questions during the update
  During the upgrade, accept all new ecss package configurations.
6. Once the update is complete, run:
  on ecss1
```
sudo apt autoremove
```
  This step can take quite a long time.

7 Preparing to upgrade SSW services on ecss1

Before upgrading, update the ssw repository:

on ecss1

sudo sh -c "echo deb [arch=amd64] http://archive.eltex.org/ssw/jammy/3.14.16.1 stable main extras external > /etc/apt/sources.list.d/eltex-ecss10-stable.list"

Temporarily fix the version of ecss-* packages to which you will need to upgrade:

on ecss1

sudo sh -c "echo 'Package: ecss-*\nPin: version 14.16.1.*\nPin-Priority: 1001\n\nPackage: erlang*\nPin: version 2:24.3.10*\nPin-Priority: 1001' >> /etc/apt/preferences.d/eltex-ecss10"

Update packages with the command:
on ecss1
```
sudo apt update
```

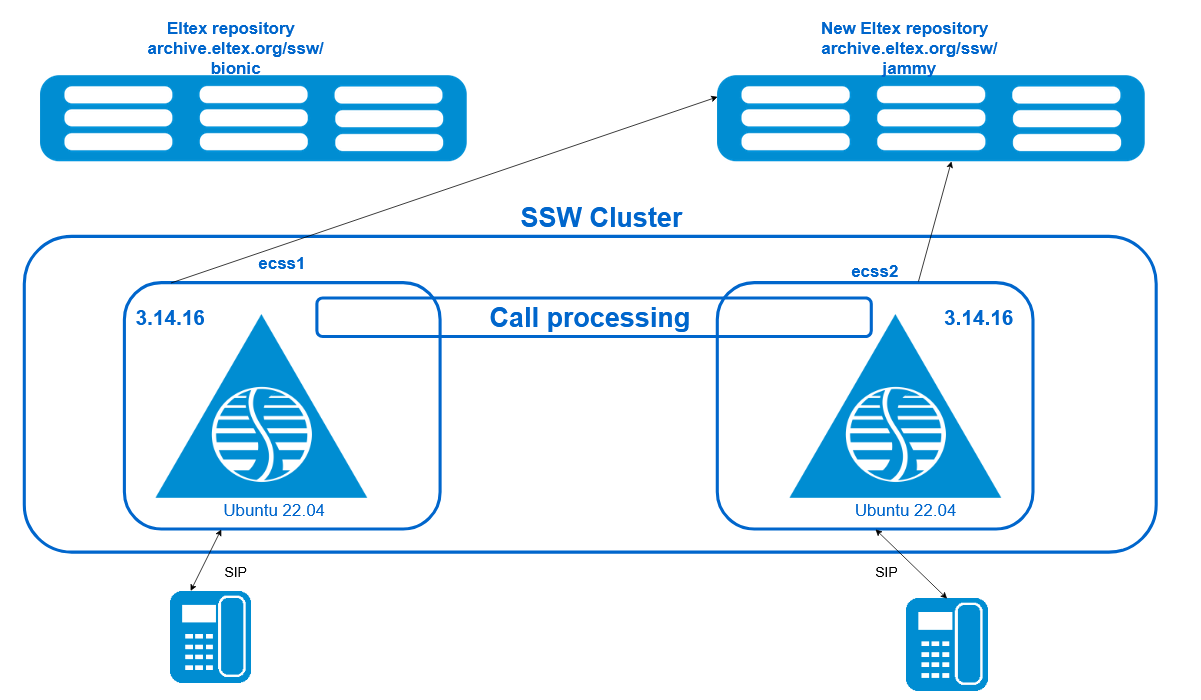

8 Updating SSW services on ecss1

Updating the ecss-dns-env package.
on ecss1
```
sudo apt install ecss-dns-env
```
When updating, accept new configuration files -Y.

After updating, update the configuration with the command:
on ecss1
```
sudo dpkg-reconfigure ecss-dns-env
```
Updating the package ecss-user:
on ecss1
```
sudo apt install ecss-user
```
Updating the package ecss-mysql:
Since both hosts will be updated to MySQL v8.0, you need to disable the default plugin in the MySQL configuration and change the user plugin to ecss2.
on ecss2
```
sudo rm /etc/mysql/conf.d/plugin.cnf
```
on ecss2
```
sudo mysql -uroot -p -N -e "SELECT CONCAT('ALTER USER \`', user, '\`@\`', host, '\` IDENTIFIED WITH caching_sha2_password;')
FROM mysql.user
WHERE plugin='mysql_native_password'  AND user NOT IN ('root','replica','debian-sys-maint','mysql.session','mysql.sys');" | sudo mysql
```
Do not restart the MySQL service under any circumstances!
Next, install the package ecss-mysql:
on ecss1
```
sudo apt install ecss-mysql
```
When installing, in response to the question "Path for external data-directory, where tables of databases will be created", specify the external directory for storing database tables, or accept the default value.
Move the backup of ecss-mysql configuration files (saved earlier) back:
on ecss1
```
sudo rm -rf /etc/ecss/ecss-mysql && sudo cp -a ~/ecss-mysql-etc-backup /etc/ecss/ecss-mysql
```
Check and, if necessary, update the parameters in "/etc/ecss/ecss-mysql/mysql-checker.conf":
Переменная "MASTER_HOST_IP" - это VRRP-адрес для MySQL, определенный в конфигурации keepalived.

Enable ecss-mysql-checker.timer

on ecss1

sudo systemctl enable --now ecss-mysql-checker.timer

Loading a database backup. Before loading the backup, you must modify it by specifying the external directory for storing the database tables. Since the ecss-mysql database tables are installed in a separate directory (/var/lib/ecss-mysql), you must specify the external directory for all tables in the backup; otherwise, they will be created in the default data directory (/var/lib/mysql). Also, when loading the backup, disable binary logging.
on ecss1
```
sed -E "s/(ENGINE=(MyISAM|InnoDB))/\1 DATA DIRECTORY = '\/var\/lib\/ecss-mysql'/g" all_dump.sql | (echo "SET sql_log_bin = 0;"; cat -) | sudo mysql -uroot -p
```
After downloading the backup, reconfigure the ecss-mysql package to include the necessary v3.14.16 migrations that are missing from the backup.
on ecss1
```
sudo dpkg-reconfigure ecss-mysql
```
After this, start replication with the command and make sure that the slave has pulled all the changes from the master (Seconds_Behind_Master should be equal to 0, and the value of Relay_Master_Log_File should match the value of Master_Log_File).
on ecss1
```
sudo mysql -uroot -p -e "START SLAVE"
```
on ecss1
```
sudo mysql -e 'SHOW SLAVE STATUS \G;' | grep -E "Seconds_Behind_Master|Relay_Master_Log_File|Master_Log_File"
```
Example
```
sudo mysql -e 'SHOW SLAVE STATUS \G;' | grep -E "Seconds_Behind_Master|Relay_Master_Log_File|Master_Log_File"
              Master_Log_File: server-mysql-bin.001152
        Relay_Master_Log_File: server-mysql-bin.001152
        Seconds_Behind_Master: 0
```
Remove the skip-slave-start parameter from MySQL configuration and the backup file:
on ecss1
```
sudo sed -i '/skip-slave-start/d' /etc/mysql/mysql.conf.d/mysqld.cnf
```
on ecss1
```
sudo sed -i '/skip-slave-start/d' /var/lib/ecss/ecss-mysql/backup/mysqld.cnf
```
It is not necessary to restart mysql - this option only affects the state of SLAVE when mysql starts, and it was started directly.

Restore master-master replication by starting replication on ecss2 and make sure that the slave has pulled all changes from the master (Seconds_Behind_Master should be equal to 0, and the Relay_Master_Log_File value should match the Master_Log_File value):

on ecss1

sudo mysql -uroot -p -e "START SLAVE;"

on ecss1

sudo mysql -e 'SHOW SLAVE STATUS \G;' | grep "Seconds_Behind_Master"

Example

sudo mysql -e 'SHOW SLAVE STATUS \G;' | grep -E "Seconds_Behind_Master|Relay_Master_Log_File|Master_Log_File"
              Master_Log_File: server-mysql-bin.001152
        Relay_Master_Log_File: server-mysql-bin.001152
        Seconds_Behind_Master: 0

Updating Erlang and SSW.
Enable SSW services before upgrading:
on ecss1
```
sudo systemctl unmask ecss-ds ecss-mycelium ecss-mediator ecss-core ecss-pa-sip ecss-sorm
```
on ecss1
```
sudo systemctl enable ecss-ds ecss-mycelium ecss-mediator ecss-core ecss-pa-sip ecss-sorm
```
To upgrade, uninstall the outdated version of Erlang. The command below will upgrade Erlang to version 24.3 and also upgrade the ecss-node and ecss-utils packages to the latest version:
on ecss1
```
sudo apt remove erlang-base-hipe
```
If Erlang was not updated by removing the old package, then first update ecss-node and ecss-utils and then update the entire Erlang using the following commands:
on ecss1
sudo apt install ecss-node ecss-utils
on ecss1
sudo apt install erlang
After upgrading Erlang, unmask the service that was masked when erlang-base-hipe was removed:
on ecss1
```
sudo systemctl unmask epmd.socket epmd.service
```
Launch SSW on the first host.
Before launching, change the cluster name to the same one set on ecss2 in the previous step.
on ecss1
```
sudo nano /etc/ecss/ecss-mycelium/mycelium1.config
```
on ecss1
```
{mycelium_broker, [
    {cluster_name, 'test_cluster_upd'},
```
Immediately disguise the ecss-sorm service on ecss1, since we intend for ecss-sorm to run on a single host in the cluster.
on ecss1
```
sudo systemctl mask ecss-sorm
```
Perform cluster merging on ecss2:
on ecss2
```
sudo ecss-control attach
```
Service Keepalived activation.
on ecss1
```
sudo systemctl enable --now keepalived
```

On ecss1, start the mycelium service and check in CoCon that the service has started and the mycelium nodes of the ecss1/ecss2 hosts are visible:

on ecss1

sudo systemctl start ecss-mycelium

performed in CoCon

/system-status
Checking...
┌─┬───────────────┬────────────────────────────┬───────────────────────────────┬────────────┬───────┐
│ │     Node      │          Release           │         Erlang nodes          │Mnesia nodes│Uptime │
├─┼───────────────┼────────────────────────────┼───────────────────────────────┼────────────┼───────┤
│ │core1@ecss2    │ecss-core-3.14.16.1.130     │core1@ecss2                    │not running │3h 5m  │
│ │ds1@ecss2      │ecss-ds-3.14.16.1.130       │ds1@ecss2                      │ds1@ecss2   │3h 5m  │
│ │md1@ecss2      │ecss-mediator-3.14.16.1.130 │md1@ecss2                      │md1@ecss2   │3h 5m  │
│ │mycelium1@ecss1│ecss-mycelium-3.14.16.1.130 │mycelium1@ecss1,mycelium1@ecss2│not running │10m 42s│
│ │mycelium1@ecss2│ecss-mycelium-3.14.16.1.130 │mycelium1@ecss1,mycelium1@ecss2│not running │3h 5m  │
│ │sip1@ecss2     │ecss-pa-sip-3.14.16.1.130   │sip1@ecss2                     │sip1@ecss2  │3h 5m  │
│ │sorm1@ecss2    │ecss-sorm-3.14.16.1.130     │sorm1@ecss2                    │not running │3h 5m  │
└─┴───────────────┴────────────────────────────┴───────────────────────────────┴────────────┴───────┘

All services are started.

  Active media resource selected list specific:
┌─────────────┬───────────┬───────────────┬───────────┬───────────┐
│    Node     │    MSR    │      MSR      │ Cc-status │ Cc-uptime │
│             │           │    version    │           │           │
├─────────────┼───────────┼───────────────┼───────────┼───────────┤
│ core1@ecss2 │ msr.ecss1 │ 3.14.15.243   │ connected │ 00:21:09  │
│             │ msr.ecss2 │ 3.14.16.1.0   │ connected │ 00:00:59  │
└─────────────┴───────────┴───────────────┴───────────┴───────────┘

Before running ecss-ds on ecss1, you need to backup the /var/lib/ecss/oasys directory and delete it in order to load the latest database from another host. You can do this by renaming the existing directory:
After this, ecss-ds on host ecss1 will load the database from host ecss2.
on ecss1
```
sudo mv /var/lib/ecss/oasys /var/lib/ecss/oasys-$(date +%Y%m%d-%H_%M)
```

On ecss1, start the ds service and in CoCon check that the ds service is available on both hosts ecss1/ecss2:

on ecss1

sudo systemctl start ecss-ds

performed in CoCon

/system-status
Checking...
┌─┬───────────────┬────────────────────────────┬───────────────────────────────┬───────────────────┬───────┐
│ │     Node      │          Release           │         Erlang nodes          │   Mnesia nodes    │Uptime │
├─┼───────────────┼────────────────────────────┼───────────────────────────────┼───────────────────┼───────┤
│ │core1@ecss2    │ecss-core-3.14.16.1.130     │core1@ecss2                    │not running        │3h 13m │
│ │ds1@ecss1      │ecss-ds-3.14.16.1.130       │ds1@ecss1,ds1@ecss2            │ds1@ecss1,ds1@ecss2│12s    │
│ │ds1@ecss2      │ecss-ds-3.14.16.1.130       │ds1@ecss1,ds1@ecss2            │ds1@ecss1,ds1@ecss2│3h 13m │
│ │md1@ecss2      │ecss-mediator-3.14.16.1.130 │md1@ecss2                      │md1@ecss2          │3h 13m │
│ │mycelium1@ecss1│ecss-mycelium-3.14.16.1.130 │mycelium1@ecss1,mycelium1@ecss2│not running        │18m 33s│
│ │mycelium1@ecss2│ecss-mycelium-3.14.16.1.130 │mycelium1@ecss1,mycelium1@ecss2│not running        │3h 13m │
│ │sip1@ecss2     │ecss-pa-sip-3.14.16.1.130   │sip1@ecss2                     │sip1@ecss2         │3h 13m │
│ │sorm1@ecss2    │ecss-sorm-3.14.16.1.130     │sorm1@ecss2                    │not running        │3h 12m │
└─┴───────────────┴────────────────────────────┴───────────────────────────────┴───────────────────┴───────┘

All services are started.

  Active media resource selected list specific:
┌─────────────┬───────────┬───────────────┬───────────┬───────────┐
│    Node     │    MSR    │      MSR      │ Cc-status │ Cc-uptime │
│             │           │    version    │           │           │
├─────────────┼───────────┼───────────────┼───────────┼───────────┤
│ core1@ecss2 │ msr.ecss1 │ 3.14.15.243   │ connected │ 00:29:01  │
│             │ msr.ecss2 │ 3.14.16.1.0   │ connected │ 00:08:50  │
└─────────────┴───────────┴───────────────┴───────────┴───────────┘

Next, run the services using the same steps: ecss-mediator, ecss-pa-sip, ecss-core with the following commands:

on ecss1

sudo systemctl start ecss-mediator

on ecss1

sudo systemctl start ecss-pa-sip

on ecss1

sudo systemctl start ecss-core

Check status in CoCon:

Result:

/system-status
Checking...
┌─┬───────────────┬────────────────────────────┬───────────────────────────────┬─────────────────────┬──────┐
│ │     Node      │          Release           │         Erlang nodes          │    Mnesia nodes     │Uptime│
├─┼───────────────┼────────────────────────────┼───────────────────────────────┼─────────────────────┼──────┤
│ │core1@ecss1    │ecss-core-3.14.16.1.130     │core1@ecss1,core1@ecss2        │not running          │3m 50s│
│ │core1@ecss2    │ecss-core-3.14.16.1.130     │core1@ecss1,core1@ecss2        │not running          │3h 22m│
│ │ds1@ecss1      │ecss-ds-3.14.16.1.130       │ds1@ecss1,ds1@ecss2            │ds1@ecss1,ds1@ecss2  │9m 42s│
│ │ds1@ecss2      │ecss-ds-3.14.16.1.130       │ds1@ecss1,ds1@ecss2            │ds1@ecss1,ds1@ecss2  │3h 22m│
│ │md1@ecss1      │ecss-mediator-3.14.16.1.130 │md1@ecss1,md1@ecss2            │md1@ecss1,md1@ecss2  │5m 22s│
│ │md1@ecss2      │ecss-mediator-3.14.16.1.130 │md1@ecss1,md1@ecss2            │md1@ecss1,md1@ecss2  │3h 22m│
│ │mycelium1@ecss1│ecss-mycelium-3.14.16.1.130 │mycelium1@ecss1,mycelium1@ecss2│not running          │28m 4s│
│ │mycelium1@ecss2│ecss-mycelium-3.14.16.1.130 │mycelium1@ecss1,mycelium1@ecss2│not running          │3h 23m│
│ │sip1@ecss1     │ecss-pa-sip-3.14.16.1.130   │sip1@ecss1,sip1@ecss2          │sip1@ecss1,sip1@ecss2│4m 40s│
│ │sip1@ecss2     │ecss-pa-sip-3.14.16.1.130   │sip1@ecss1,sip1@ecss2          │sip1@ecss1,sip1@ecss2│3h 22m│
│ │sorm1@ecss2    │ecss-sorm-3.14.16.1.130     │sorm1@ecss2                    │not running          │3h 22m│
└─┴───────────────┴────────────────────────────┴───────────────────────────────┴─────────────────────┴──────┘

All services are started.

  Active media resource selected list specific:
┌─────────────┬───────────┬───────────────┬───────────┬───────────┐
│    Node     │    MSR    │      MSR      │ Cc-status │ Cc-uptime │
│             │           │    version    │           │           │
├─────────────┼───────────┼───────────────┼───────────┼───────────┤
│ core1@ecss1 │ msr.ecss1 │ 3.14.15.243   │ connected │ 00:02:37  │
│ core1@ecss2 │ msr.ecss1 │ 3.14.15.243   │ connected │ 00:38:31  │
│             │ msr.ecss2 │ 3.14.16.1.0   │ connected │ 00:18:20  │
└─────────────┴───────────┴───────────────┴───────────┴───────────┘

Updating the package ecss-restfs:
on ecss1
```
sudo apt install ecss-restfs
```

Updating the package ecss-media-server:

on ecss1

sudo apt install ecss-media-server

Update configuration:

on ecss1

sudo dpkg-reconfigure ecss-media-server

Check and, if necessary, manually correct the file → /etc/ecss/ecss-media-server/config.xml

on ecss1

<?xml version="1.0" encoding="utf-8"?>
<config date="05:27:38 07.12.2024">
  <general log-level="3" log-rotate="yes" max-calls="8192" max-vid-calls="8192" max-in-group="512" load-sensor="media" load-delta="10" calls-delta="100" spool-dir-size="100M" log-name="msr.log" log-path="/var/log/ecss/media-server" use-srtp="disabled" enable-ice-transport="no" ice-update="no" aggressive-ice="yes" stun-server="" suspicious-mode="no"/>
  <transport bind-addr="10.0.20.82" port="5040" transport="udp+tcp"/>
  <!-- By default configured public TURN-server -->
  <turn-server use-turn="no" host="numb.viagenie.ca" user="webrtc@live.com" password="muazkh"/>
  <media mixer-clock-rate="8000" use-vad="no" cng-level="0" jb-size="60" rtcp-timeout="0" rtp-timeout="350" udp-src-check="no" cn-multiplier="3" port-start="12000" port-range="2048" tias-in-sdp="no" thread-cnt="2" vid-enc-threads="2" vid-dec-threads="2" video-conf-layout="evenly" keyframe-interval="1000" vid-decode-delay="100" silence-threshold="-30" dtmf-flash-disable="no" video-dscp="0" other-dscp="0" dummy-video-src="/usr/share/ecss-media-server/video/dummy_video.yuv" video-enc-width="640" video-enc-height="360" finalsilence="1000" rtcp-stat-dump="yes" dtmf-tg-fpc-loop="10" dtmf-tg-fit="1" dtmf-tg-fot="2" dtmf-tg-volume="12288"/>
  <codec pcma="3" pcmu="2" ilbc="0" gsm="0" g722="3" g729="1" speex="5" l16="0" g7221="6" opus="0" h264="1" h263-1998="2" t38="1" tel-event-pt="0"/>
  <accounts>
    <!-- <dynamic msr_name="msr.name"
            realm="sip:127.0.0.1:5000"
            dtmf_mode="rfc+inband+info"
            auth_name="user"
            auth_password="password" /> -->
  </accounts>
  <pbyte>
    <mcc bind-addr="10.0.20.82" port="5700"/>
  </pbyte>
  <conf_dir path="/etc/ecss/ecss-media-server/conf.d"/>
  <metrics enable="no"/>
  <rtp>
    <auto addr-v4=""/>
  </rtp>
</config>

Also, to register a media server from ecss2 to ecss1, it is needed to remove the previously added comments from the file /etc/ecss/ecss-media-server/conf.d/default.xml on ecss2:

<?xml version="1.0"?>
<config>
  <accounts>
          <!--<dynamic msr_name="msr.ecss2" realm="sip:10.0.20.81:5000" dtmf_mode="rfc+inband+info" auth_name="user" auth_password="password"/>-->
          <dynamic msr_name="msr.ecss2" realm="sip:10.0.20.82:5000" dtmf_mode="rfc+inband+info" auth_name="user" auth_password="password"/>
  </accounts>
</config>

Then restart the service:

on ecss2

sudo systemctl restart ecss-media-server.service

Updating the package ecss-media-resources:
on ecss1
```
sudo apt install ecss-media-resources
```
Updating the package ecss-web-conf:
on ecss1
```
sudo apt install ecss-web-conf
```
Updating the package ecss-teleconference-ui
on ecss1
sudo apt install ecss-teleconference-ui
Updating the package ecss-crm-server
on ecss1
sudo apt install ecss-crm-server
Updating the package ecss-cc-ui
on ecss1
sudo apt install ecss-cc-ui
After updating services, delete the ssw version commit file:
on ecss1
```
sudo rm /etc/apt/preferences.d/eltex-ecss10
```

Дерево страниц

Updating from version 3.14.15 to 3.14.16

1 Preparatory steps on ecss2

2 Upgrading the Ubuntu 18.04 operating system to ecss2

3 Preparing to upgrade SSW services on ecss2

4 Updating SSW services on ecss2

5 Preparatory steps on ecss1

6 Upgrading the Ubuntu 18.04 operating system on ecss1

7 Preparing to upgrade SSW services on ecss1

8 Updating SSW services on ecss1
