In this section consider pass by face, if necessary the worker can also pass through the turnstile using their pass.
Preliminary conditions
- The controller is configured in the Turnstile mode;
- Input to and Output from is configured in the relay;
- An access pattern is created in which a 1-point turnstile is selected;
- The access pattern is assigned to a Worker;
- The Camera is added.
Activation of worker`s analytics

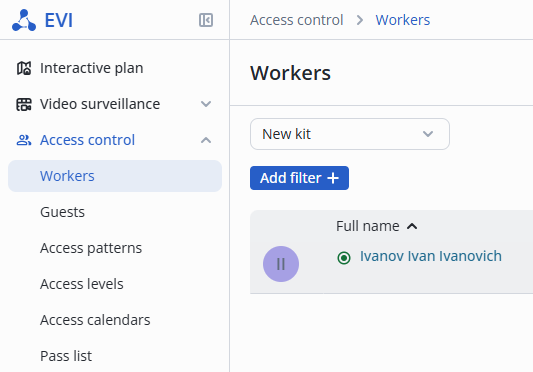

Switch to the Worker editing section.

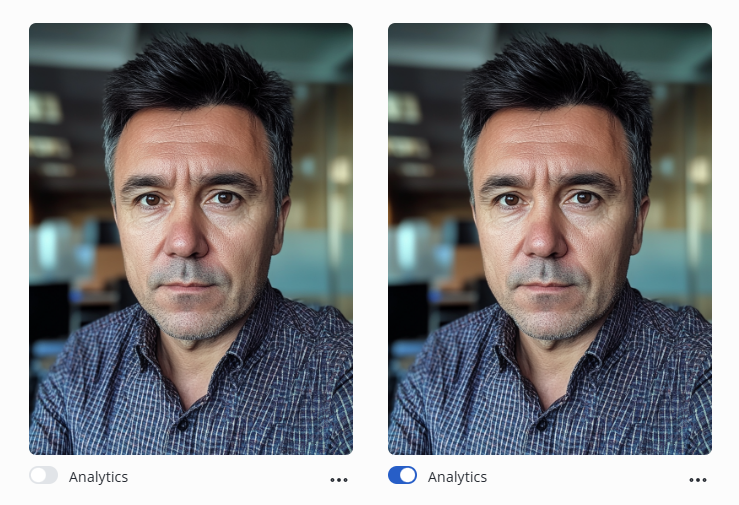

To activate the worker's analytics, move the Analytics switch to the enabled position.
Camera configuration

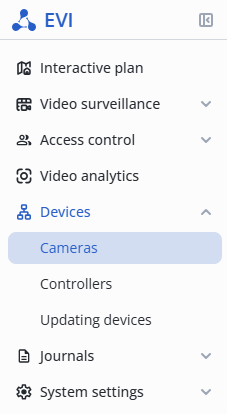

In the Devices section, go to the Cameras section.

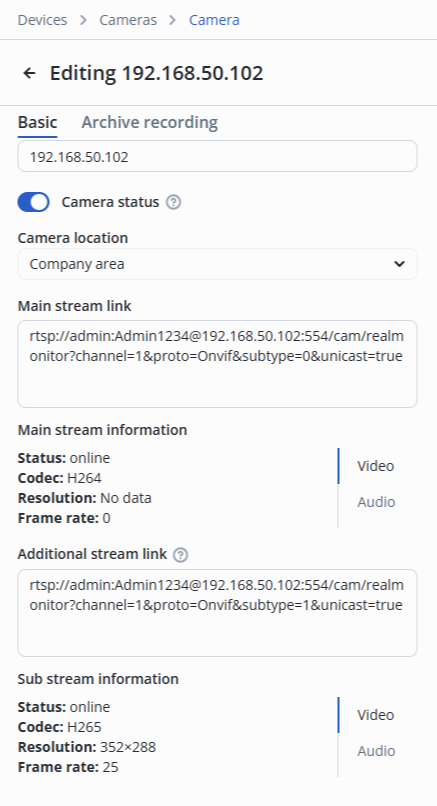

Camera location
The camera location must correspond to the Input to parameter of the relay to be controlled.
Select the location of the camera.
Analytics configuration

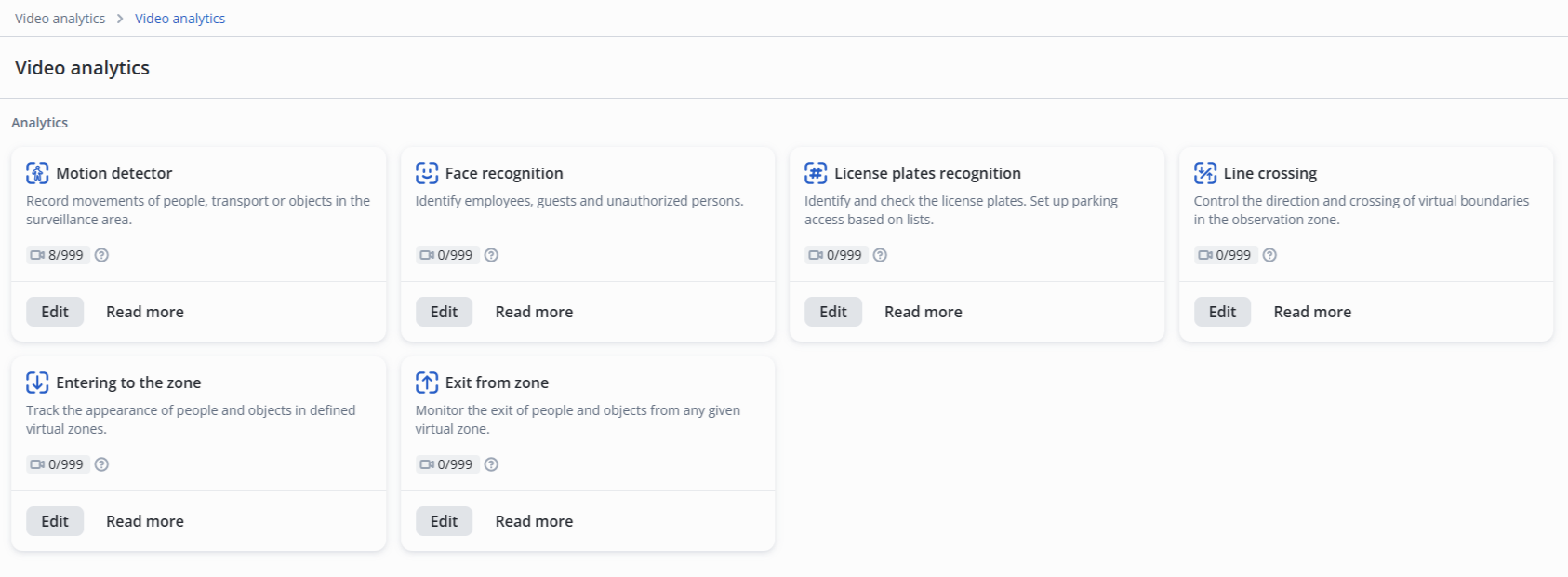

Switch to the Video analytics page.

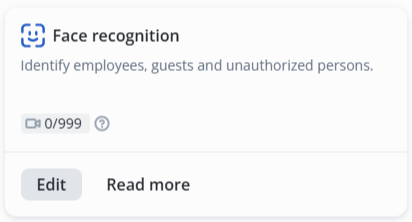

Click Edit at the Face recognition model.

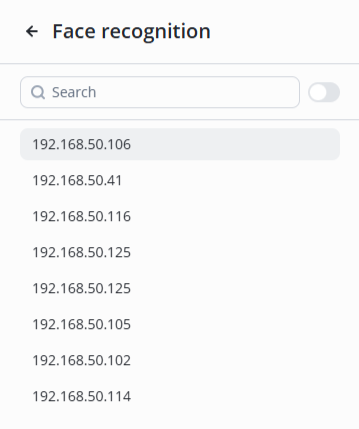

Select the desired camera from the list.

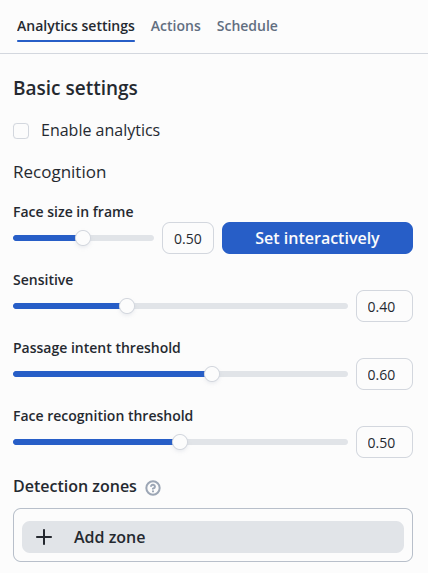

Basic parameter configuration
- Analytics state — Enabled;
- Face size in frame — 0.18.
Face size in the frame
The parameter is selected by matching on a real camera.
To perform this, place a person in the camera frame, positioning in front of the lens, and select the area using the Set interactively button.
Detection zone configuration
The recognition zone needs to be configured when the frame may contain multiple faces across the entire frame area.
An example of highlighting a typical area for facial recognition:
This image has the sides cut off so that the faces standing on the sides are not in the recognition area.
Recognition actions configuration

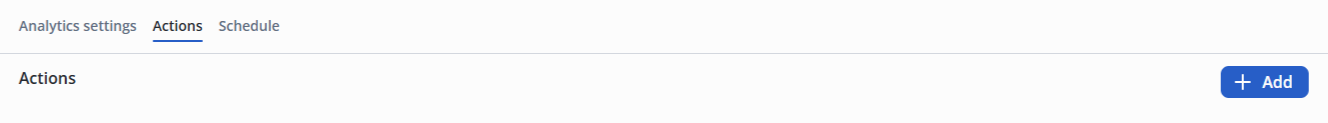

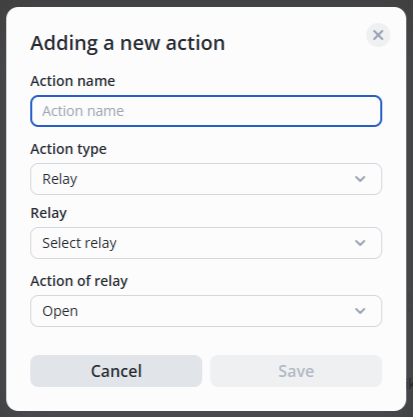

Move the switch to the active position, then click the Add action button.
Next, select the action type — Relay, the required relay from the list and the relay status — Pass.
It is necessary to add the second camera in the same way and configure the passage through the turnstile in the opposite direction, using the second relay, to allow passage in both directions.
