About EVI Platform

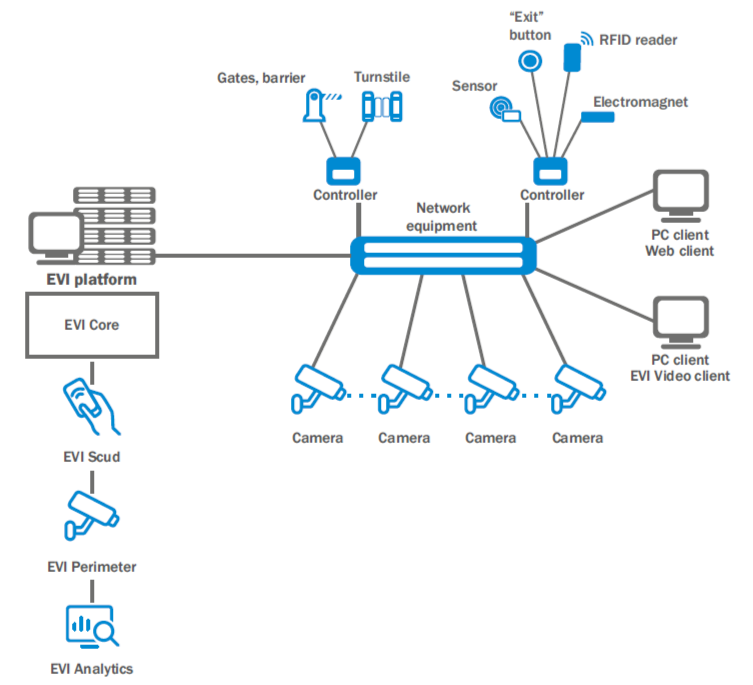

EVI Platform is designed to organize a unified system for management, configuration and monitoring of devices (controllers, cameras and sensors).

EVI Platform includes:

• EVI Core is a platform core designed for modules configuration;
• EVI Core Web is a web GUI for system management;
• EVI Scud is a module of the access control and management system designed for organizing access control in the company;
• EVI Analytics is a video analytics module designed for detecting, recognizing, counting and tracking objects according to models;
• EVI Perimeter is a video surveillance module designed for receiving video streams from cameras and saving them to the archive;
• EVI Video Client is an application designed for viewing video streams from cameras and interacting with the video archive.
• EVI Web Proxy is a Linux application designed for viewing video streams from cameras and interacting with video archives using the H.265 codec via the web interface.

Key features of EVI Platform

EVI Core

• Interactive plan;
• System logs;
• Event notifications in the web interface;
• Remote device rebooting;
• Copying settings between devices;
• Creating the organization hierarchy;
• Support for administrator and security roles.

EVI SCUD

• Automatic addition of PACS controllers to the system;
• Flexible access management according to the list of allowed places and visiting times;
• Support for various work schedules from five-day to shift work schedules;
• Securing the premises;
• Tracking incidents in the platform with mandatory confirmation;
• Generation of visit reports;
• Remote access;
• Access to face and vehicle recognition;
• Generation of employee profiles;
• Access pass management;
• Support for guest mode;
• Support for time tracking.

EVI Analytics

• Processing surveillance camera video streams with analytics;
• Support for video analytics: license plate numbers, faces and objects;
• Configuring actions based on the result of recognition and detection;
• View analytics results in the client and web interface.

EVI Perimeter

• Receiving video broadcasts from CCTV cameras;
• View live video broadcasts from cameras;
• Combining streams from different cameras onto one screen in different configurations;
• Recording video stream data to the archive in "By movement" mode;
• Recording video stream data to the archive in permanent recording mode;
• Recording video stream data to archive in permanent recording mode + motion tagging;
• Recording video stream data to archive in schedule mode;
• Generating screenshots from the archive and camera broadcasts;
• Uploading videos from the archive;
• Access to the video archive from the client and web interface;
• Archive playback speed control;
• Support for multiple video streams from a single camera;
• Motion detection module on the server;
• Support for video codecs: H.264, H.265;
• Support for RTP/RTSP;
• Visual client working on Linux, Windows 10;
• Import and export in csv format;
• Adding cameras using ONVIF;
• Support for PTZ;
• Support for fisheye cameras;
• Support for WebSocket between client and server;
• Full screen mode;
• Support for 3 monitors for video wall display.

Network protocols

Protocols

• TCP/IP;
• HTTPS;
• SSL/TLS;
• RTP;
• RTSP;
• RTMP;
• WSS.

Security

• Password protection;
• Complex password;
• HTTPS encryption;
• WS-Username token, WS-Username basic for ONVIF;
• TLS1.3.
