Archive type on the timeline

The types of entries and the way they are displayed on the timeline are listed below.

Permanent recording

A solid orange line indicates the presence of a video recording.

Movement record

Orange fragments indicate the presence of video recordings.

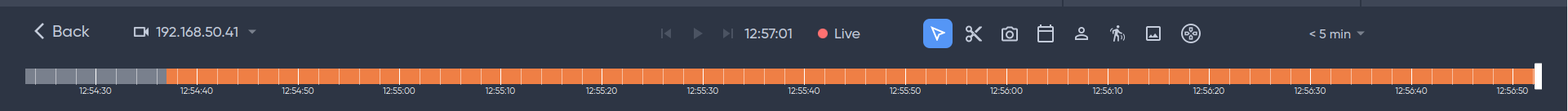

Archive navigation

Navigation elements from left to right:

  • Back — exit archive view mode;
  • Cursor — cursor mode for navigating the timeline;
  • Save fragment — cursor mode for selecting a segment to save the video;
  • Screenshot — saving an image from broadcast or archive;
  • Quick camera switching — switching between cameras;
  • Playback speed — select the archive playback speed: 0.5x, 1x, 2x, 4x, 8x;
  • Previous event — move to the previous fragment of the recording;
  • Pause/Play — single button for pausing and playing the archive;
  • Next event — transition to the next fragment of the recording;
  • Time — the current time in the player;
  • Live — button to switch from the archive to the live broadcast;
  • Select date — button to open the calendar and select the date for which to display the archive;
  • Analytics — enable/disable face detection by analytics when viewing the archive;
  • Motion display — enable/disable highlighting of moving objects when viewing the archive;
  • Switch archive connection mode — archive mode changes (HTTP/WebRTC);
  • PTZ control — button to call up the camera control panel via ONVIF;
  • Minutes — timeline scale.
